Meet the all new Powercase One
Now with NATO number 6130-640013760
Features
- 0.9KWh to 3.6KWh Portable Power System. Has the ability to increase as higher capacity BB-2590/U come to market.
- SMBus compliant.
- Holds one (1) to twelve (12) BB-2590/U batteries packed into a rugged, watertight case (batteries NOT included).
- Contains an integrated Power Management System.
- DC input protection prevents over-discharge damage to vehicle batt
- Configurable output connector interface to fit your need
Optional modules
- Power Distribution Unit (PDU)
- Power Pack Module Heater (battery heating during cold temperatures.)
- 115/230V AC Quick charger
- Inverter Module 220V AC, 2A (AC-powered laptops)
- Extension cables
The Powercase One STD is powered by up to 12 man-pack standard batteries, commonly referred as BB-2590/U.
A rugged, versatile power solution
NATO number 6130-640013760
Overview
Technical Data
Related products
Overview

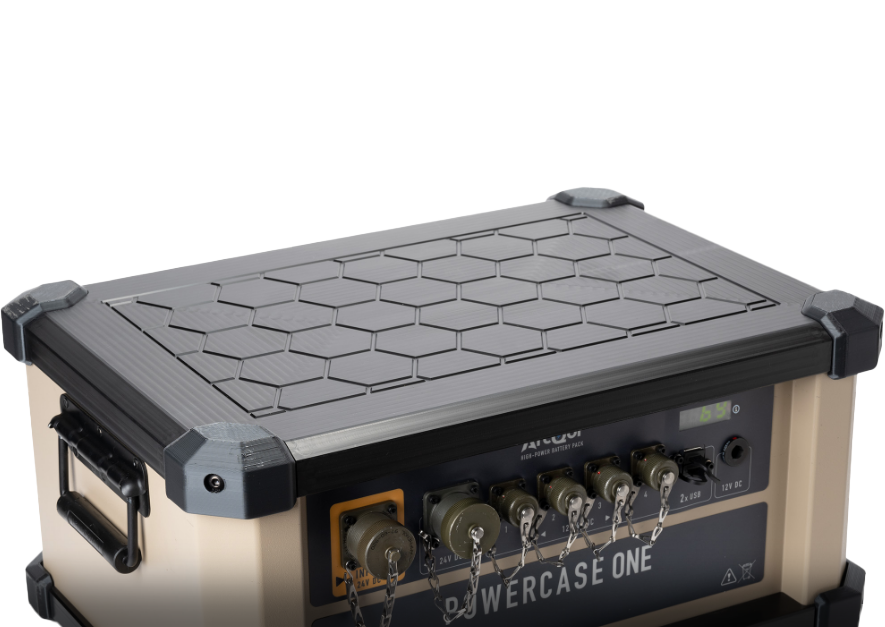

The Powercase One STD is a rugged, waterproof portable power system. Capable of powering a variety of small to mid-sized AC and DC equipment. Use up to 12 military standard BB-2590/U batteries.
A true power station
Top "12" reasons to choose this power bank
1. Use your existing battery stock. Up to 12 man-pack batteries.
2. Reliable stored energy for remote stations.
3. 8kg for body only. Batteries can be installed on location. Portable config.
2. Reliable stored energy for remote stations.
3. 8kg for body only. Batteries can be installed on location. Portable config.
Off grid remote sensors
Power remote sensors or communication masts situated in the middle of nowhere? The Powercase One can be set up and left to power your devices 24 hours a day, seven days a week. Set up and go is the objective for this mission. Able to withstand all harsh climates, this power station will provide ample power.
For extra protection avoid placing the unit in direct sunlight, as temperatures can easily exceed +70ºC.
Technical Data
Input
12 - 24V DC
DC Output
5.0-33.6V DC
Batteries
Capacity: Up to 3.6kWh
To be used with max.
12 military standard BB-2590/U Li-Ion batteries.
To be used with max.
12 military standard BB-2590/U Li-Ion batteries.
Temperature range
Operating Temp: -30°C to +55°C (dependant on battery type) Storage Temp: -40ºC to +70ºC
Physical Dimensions
475 x 335 x 245mm (LxWxH)
Heavy-duty aluminum
Heavy-duty aluminum
Weight
Approx. 8kg (when batteries are removed)
Environmental compliance
Designed to meet the following standards; MIL-STD-461G, 810F, 1275D
Charge time
24V DC: Approx. 10h (without powered external devices)
Optional Modules
- Power Distribution Unit (PDU)
- Inverter Module 220V AC, 2A (AC-powered laptops)
- Power pack module heater (battery heating during cold temperatures)
- 115/230V AC Quick charger
- Extension cables
Technical Data
Input
12-24V DC
DC Output
5.0-33.6V DC
Charge time
24V DC: Approx. 10h (without powered external devices)
Batteries
Capacity: Up to 3.6kWh
To be used with max. 12 military standard BB-2590/U Li-Ion batteries.
To be used with max. 12 military standard BB-2590/U Li-Ion batteries.
Temperature range
Operating Temp: -30°C to +55°C (dependant on battery type) Storage Temp: -40ºC to +70ºC
Physical Dimensions
475 x 335 x 245mm (LxWxH)
Heavy-duty aluminum
Heavy-duty aluminum
Weight
Approx. 8kg (when batteries are removed)
Environmental compliance
MIL-STD-461G, 810F, 1275D
